Stacks in 07 Airbox screw stripped .. help?

Last time I didn't have time to change plugs so I got a mechanic at a dealership to do my plugs...

This time, I had time to do it myself and got some new NGK Iridium plugs the other day.
So after work I took all my fairing off my 2007 1000RR and got as far as the upper air box.



As I was about to unscrew the velocity stacks on the right hand side when I notice that one of the screws had previously been stripped... as you can see at the red arrow.



That put me at a grinding halt this afternoon putting in the plugs...

Any solution for getting that screw out...? such a tight spot
__________________
Matt - RR
NOC is offline   Reply With Quote
Sponsored Links
Advertisement

Old 11-08-2012, 02:06 PM   #2
klu
Member

Join Date: Feb 2012
Location: United Kingdom
Posts: 31
I have the exact same problem on 3 of the 6 screws!
__________________
klu is offline   Reply With Quote
Old 11-08-2012, 02:43 PM   #3
Senior Member

chaspaw's Avatar

Join Date: Jul 2007
Location: So Cal.
Posts: 466
Get the drill and a drill bit about the same size as the head of the screw and drill the head off. Once you have done that take the stack off and you will be able to grab the screw with some vise grips and remove it. Just be careful when drilling.
chaspaw is offline   Reply With Quote
Old 11-08-2012, 02:57 PM   #4
Senior Member

Join Date: May 2011
Posts: 163
That's very frustrating mid project. I picked up a screw extractor kit and that has worked for me well.
Sti2.5ldohc is offline   Reply With Quote
Old 11-08-2012, 03:07 PM   #5
Senior Member

Join Date: Sep 2012
Posts: 453
Holy shit yes my 09 screws are stripped too. I'm tryna do the emissions removal thing and this too has stopped my progress
RC-DEVIL is offline   Reply With Quote
Old 11-08-2012, 03:17 PM   #6
Admin



lexus rx's Avatar

Join Date: May 2004
Location: north kakalak
Posts: 14,323
whenever you go to loosen your airbox screws, you need to MAKE SURE that you have the correct size screwdriver and always put more force than normal on each screw to break it loose. if you strip one of them completely out, it sucks. make sure to buy new screws to go in before installing them again. we can get them, or you can grab them locally.

what i bought was a craftsman bolt extractor set. it will grab on to the top portion the screw.

http://www.sears.com/craftsman-14-pi...7&blockType=G7


http://www.sears.com/craftsman-10-pc...&blockType=G10
__________________

http://www.superbikesupply.com
info@superbikesupply.com
828-287-2101-sales
http://www.facebook.com/superbikesupply
JOIN US ON OUR NEW FORUM!http://forum.superbikesupply.com/forum.php



ΜΟΛΩΝ ΛΑΒΕ

Being right is bitter-sweet when you're ruled and surrounded by morons.

"Men fight for liberty and win it with hard knocks. Their children, brought up easy, let it slip away again, poor fools. And their grandchildren are once more slaves." - D.H. Lawrence
lexus rx is offline   Reply With Quote
Old 11-08-2012, 03:22 PM   #7
Admin



lexus rx's Avatar

Join Date: May 2004
Location: north kakalak
Posts: 14,323
also, if you get yourself a larger than normal phillips head bit/screwdriver you can use the manual impact method first. get one person to hold down on the screwdriver while turning it counter clockwise to loosen it up. you hit the top of the screwdriver with a hammer/mallet. if that doesnt work, try this.


http://www.sears.com/shc/s/p_10153_1...33-102708189-2
__________________

http://www.superbikesupply.com
info@superbikesupply.com
828-287-2101-sales
http://www.facebook.com/superbikesupply
JOIN US ON OUR NEW FORUM!http://forum.superbikesupply.com/forum.php



ΜΟΛΩΝ ΛΑΒΕ

Being right is bitter-sweet when you're ruled and surrounded by morons.

"Men fight for liberty and win it with hard knocks. Their children, brought up easy, let it slip away again, poor fools. And their grandchildren are once more slaves." - D.H. Lawrence
lexus rx is offline   Reply With Quote
Old 11-14-2012, 04:15 PM   #8
Senior Member

Join Date: Sep 2012
Posts: 453

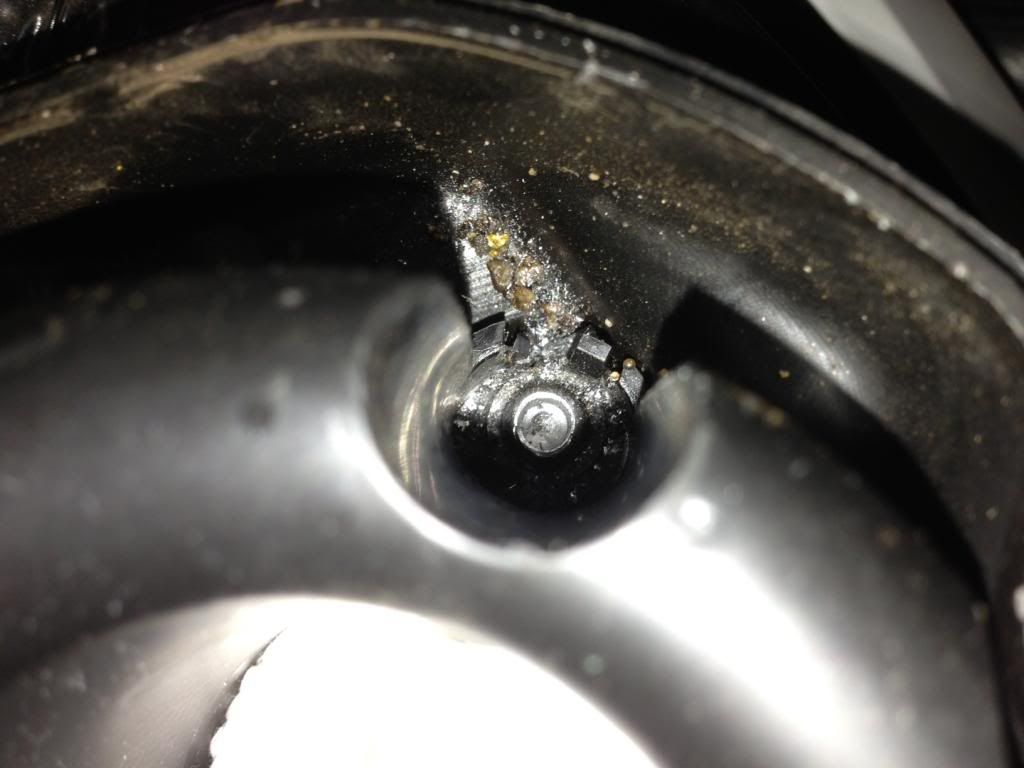

so the drill bit needs to be larger than the size of the head? is this hole large enough or does it need to be bigger? cant manage to get these bastards off tried the impact gun thing with a flat head bit and that didnt work....ideas???

RC-DEVIL is offline   Reply With Quote
Old 11-15-2012, 02:50 PM   #9
Magoo

magoo1000's Avatar

Join Date: Sep 2010
Location: Northern NY
Posts: 33
boy that looks about the right size bit.. i think u might just have to go just a lil deeper. u have to drill down just below the head of bolt. then the head of the bolt should come free
__________________
Ride it like you stole it!
magoo1000 is offline   Reply With Quote
Old 11-15-2012, 05:14 PM   #10
Huge Member

MrDude_1's Avatar

Join Date: Jul 2009
Location: Charleston, SC
Posts: 3,542
remember, these are Japanese spec screws... and you're likey to have a SAE (american) screwdriver.

one trick is to take the close fitting SAE screwdriver, and file the tip down so it fits snug in the JA screws.

another tip is to use a dab of valve lapping compound or toothpaste on the screwtip... doing this increases the 'grip' the screwdriver has on the screw.
__________________
