manual fan toggle

2455 Views 9 Replies 7 Participants Last post by kanuspel, May 3, 2009

tony

Discussion Starter · May 3, 2009

I read all the posts about how easy the manual fan switch is to wire, but can not get mine to work to save my life.

Here is what i did:

20amp toggle, 3 prong

ground wire to bolt
"power" wire straight from battery POSITIVE terminal
"acc" wire to green wire coming out of fan

The toggle lights up, but the fan does not run when I turn on the ignition.

does this sound right?

I still have a black with orange striped wire just loose.

Any ideas???

Save

1 - 10 of 10 Posts

h82loze

· #2 · May 3, 2009

You may want to try wiring off of the fan relays.
This kit does that:
http://cgi.ebay.com/ebaymotors/HOND...1550471QQptZMotorcyclesQ5fPartsQ5fAccessories
This will turn both fans on when you flip the switch.

Also, the green wire is probably the ground wire for the fan. The solid green wires tend to be grounds on Honda's (at least the 08). Try hooking up to the other wire.

Save

tony

Discussion Starter · #3 · May 3, 2009

Yeah i tried both wires, no luck. I have a JSB ECU.

Save

HMAN

· #4 · May 3, 2009

tony said:
Yeah i tried both wires, no luck. I have a JSB ECU.

PM send with the answer and pics :th_salute::thumbsup:

Save

ant...

· #5 · May 3, 2009

Ive not done this mod on my 08 blade yet but i have on other bikes.

Normally we run a switch straight off the radiator heat sensor. The heat sensor works by connecting a circuit when it heats and expands, som we put a switch on it.

My 08 blade radiator fan doesnt kick in till 110+, so im going to fit a switch for waiting in traffic. Still need to find it though

Save

StuntPunkJames

· #6 · May 3, 2009

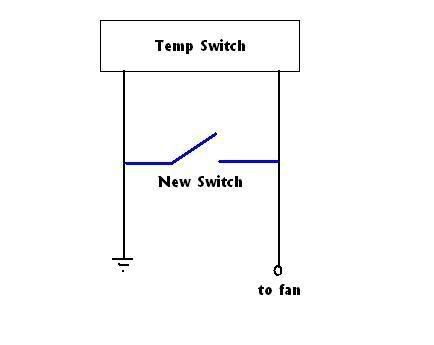

Did this on a 636 once and if its the same this is what I did...I know on my f4i it is not like this had to do it different but maybe the 1krr is the same

Like this the fan will kick on by itself at temp and also allow you to turn it on with switch

See less See more

Save

ant...

· #7 · May 3, 2009

Yep thats what i did on my GSXR stunt bike.

No doubt the CBR fan runs off the ECU or something overly complex, "HONDA!".

Save

tony

Discussion Starter · #8 · May 3, 2009

I got it! I was going about it totally wrong. It really was too easy.

Mounted the toggles on a nice carbon fiber panel MRGRN made for me too.

Thanks ya'll!!

Save

4BillionDollarMan

· #9 · May 3, 2009

pheeeeeeeeeeewwww
all's well that ends well

i thought we had another flu crisis on our hands when i got your PM :thefinger:

Save

kanuspel

· #10 · May 3, 2009

tony said:
I got it! I was going about it totally wrong. It really was too easy.

Mounted the toggles on a nice carbon fiber panel MRGRN made for me too.

Thanks ya'll!!

where's the pic?

Save
