PLEASE HELP where is my o2 sensor at?

2237 Views 12 Replies 6 Participants Last post by ThejollyrogeRR, Apr 13, 2009

ThejollyrogeRR

Discussion Starter · Apr 11, 2009

Ok I just finished installing a PCV and an IRC and i can not find the oxygen sensor to plug it

i do have a california bike so i know i need to do something with the sensor

i also have a slip on exhaust

please help

Save

1 - 13 of 13 Posts

brads955

· #2 · Apr 11, 2009

ThejollyrogeRR said:
Ok I just finished installing a PCV and an IRC and i can not find the oxygen sensor to plug it

i do have a california bike so i know i need to do something with the sensor

i also have a slip on exhaust

please help

The US models don't have one. If you want to do something with the factory O2 sensor, you will need to purchase a european bike.

Save

ThejollyrogeRR

Discussion Starter · #3 · Apr 11, 2009

i thought that california bikes have them?

Save

Nameless

· #4 · Apr 12, 2009

If you have a sensor it is located in the slip-on exhaust, si you've should have noticed that.

When you follow the cable from the sensor, it will take you to the left side fairing. You can unhook it by loosen the connector (succes with that one) and there you have to plug in the O2 sensor.

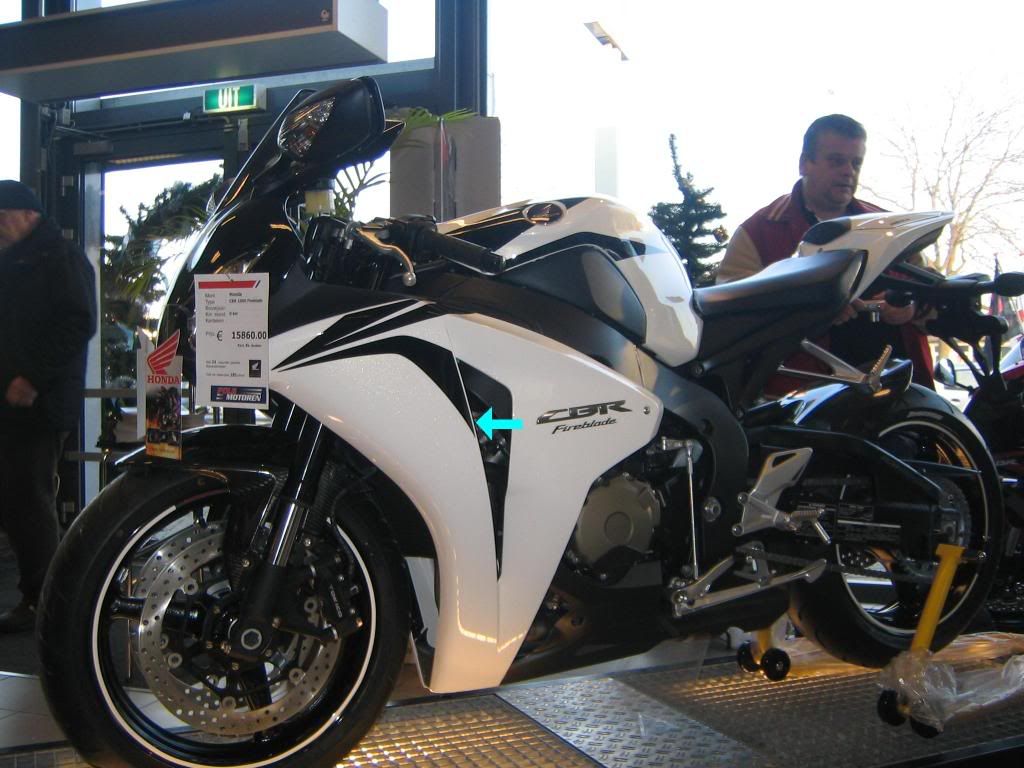

Here's a pic to show you where its at:

See less See more

Save

ThejollyrogeRR

Discussion Starter · #5 · Apr 12, 2009

are you talking about the one that is connected to the fan?

Save

Nameless

· #6 · Apr 12, 2009

ThejollyrogeRR said:
are you talking about the one that is connected to the fan?

Nope, there is more than 1 normally (on euro bikes at least, like mine)

If you follow the wire it should go to a "Lambda"-sensor which is plugged in you're exhaust.

My bike has a Taylormade, which is an US brand, so there is no hole to put this Lambda in, because normally US bikes dont have that.

The O2 sensor is needed for Euro bikes wich have slip-ons without Lambda-sensor holes in it.

Save

ThejollyrogeRR

Discussion Starter · #7 · Apr 12, 2009

yes i also have a taylor made
where in the exhaust is it found?

i was told by dynojet that i needed an o2 sensor eliminator because i have a CA bike

Save

Gunnar971

· #8 · Apr 12, 2009

They didnt send instruction on how to install it??? They usually do. I didnt think the US bike had an O2 sensor either. I think you got ripped off my friend

Save

ThejollyrogeRR

Discussion Starter · #9 · Apr 12, 2009

like i said i thought they have them on CA bikes to pass the stupid emissions or some shit

but i really dont care if i lost $15 dollars i just want my bike to run 100%

Save

Nameless

· #10 · Apr 12, 2009

ThejollyrogeRR said:
like i said i thought they have them on CA bikes to pass the stupid emissions or some shit

but i really dont care if i lost $15 dollars i just want my bike to run 100%

Its almost impossible to adjust anything on a dyno without the bike having a O2 eliminator. So i think you dont need one...

Save

h82loze

· #11 · Apr 13, 2009

I'm gonna have to agree with the others that have said the US bikes INCLUDING CA models DO NOT have an O2 sensor. The service manual has no mention of an O2 sensor, and it always points out when there is a difference between CA models and non-CA models.

Save

Jet City Racer

· #12 · Apr 13, 2009

ThejollyrogeRR said:
like i said i thought they have them on CA bikes to pass the stupid emissions or some shit

but i really dont care if i lost $15 dollars i just want my bike to run 100%

The only additional item Ca bikes have is the fuel vent canister. There is no exhaust O2 sensor on any new US CBR1000RR.

If you want to use the autotune function you need to have a bung welded on to your collector. The inlet of your slip on is too short to accommodate one. Any muffler shop can do this for you.
